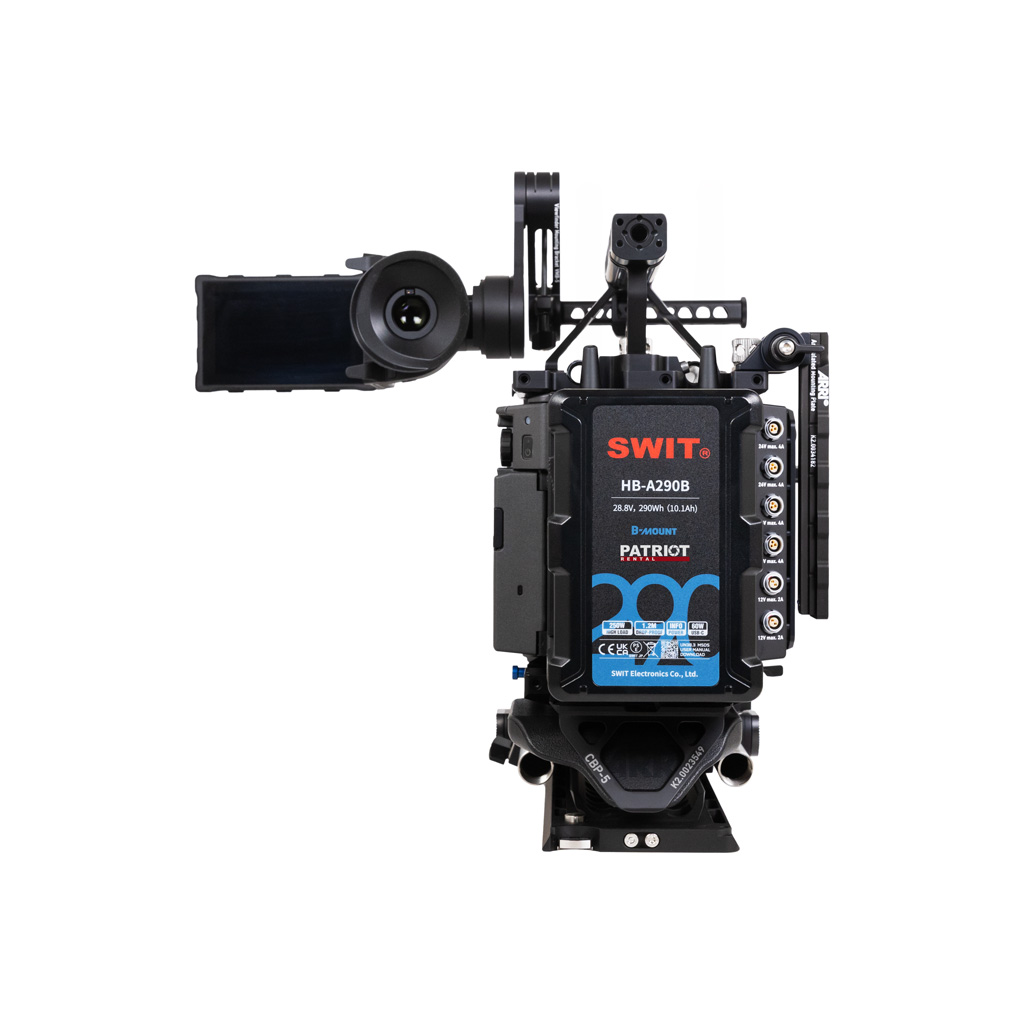

ARRI ALEXA 35 4.6K
ARRI ALEXA 35 Super 35 camera with the 4.6K ALEV 4 sensor and 17 stops of dynamic range.
The ARRI ALEXA 35 is a Super 35 camera built around the ALEV 4 sensor (4608 x 3164), offering 17 stops of dynamic range, clean images in low light and Reveal Color Science. It weighs about 2.9 kg and records ARRIRAW and ProRes at up to 120 fps.
Key specifications
- Super 35 ARRI ALEV 4 CMOS sensor, 4608 x 3164 (27.99 x 19.22 mm), 4:3 format
- 17 stops of dynamic range, EI range 160-6400
- Reveal Color Science and LogC4, ARRI Look File support
- ProRes 422, 422 HQ, 4444, 4444 XQ and ARRIRAW codecs
- LPL mount (LBUS), PL lenses through the PL-to-LPL adapter from the kit
- Built-in ND filters: Clear, 0.6, 1.2 and 1.8
- Three independent 10-bit monitoring outputs, SDR and HDR
- B-mount battery power
- Dimensions 147 x 152.5 x 203 mm (L x H x W), weight about 2.9 kg
Recording formats and frame rates
- ARRIRAW Open Gate 4.6K 3:2 and ARRIRAW 4.6K 16:9: up to 75 fps
- ARRIRAW 4K 16:9, 4K 2:1 and UHD 3.8K: up to 120 fps
- ARRIRAW 3.3K 6:5 and 3K 1:1: up to 100 fps
- ProRes Open Gate 4.6K 3:2: up to 60 fps
- ProRes 4K 16:9: up to 100 fps, UHD, 2K, HD and 4K 2:1: up to 120 fps
- ProRes 3.3K 6:5: up to 75 fps, 3K 1:1: up to 90 fps
- ProRes anamorphic 2x (3.3K 6:5, 3K 1:1, 2.7K 8:9): up to 90-100 fps
Available formats depend on the licenses installed on the camera, ask a manager to confirm.
What is in the kit
- Case and ALEXA 35 body, ALEXA Multi Viewfinder MVF-2
- LPL mount (LPL LDS Lens Mount), PL-to-LPL adapter
- AMP-1 mounting plate, LMS-4 low mode support, TEB-1 top extension bracket, CCH-5 handle, CSB-1 side brackets, CBP-5 and BUD-1 plates, RMB-7, SAS-2 and VMB-5 brackets
- 300-350 mm dovetail plate, Camera Plate 35 Touch, 15 mm rods (2 pcs) and 19 mm rods (2 pcs)
- Power: B-mount adapter, PDM-1 module, 6 SWIT HB-A290B 290 Wh B-mount batteries with charger and case
- Media: 3 Codex Compact Drive 2 TB drives in a case, Codex Compact Drive Dock (Thunderbolt 3)
- 3 DJI antennas, cables, 64 GB USB-C flash drive, camRade wetSuit kit
The full list is on the Includes tab.
Lenses
For ALEXA 35 the catalog includes ARRI Signature Prime (LPL), Zeiss Supreme Prime (LPL/PL) and Cooke S7/i FF (PL), all for full frame, as well as the anamorphic Cooke Anamorphic/i FF Plus (PL). PL lenses are mounted through a PL-to-LPL adapter, which is included in the camera kit.
Stabilization and accessories
For stabilization there are the DJI Ronin 2 (load up to 13.6 kg) and the Easyrig Vario 5 with STABIL Arm (up to 17 kg), with other options in the camera stabilization section. Check the weight of your rig with a manager. There are also lens control systems, matte boxes, tripods and heads, DIT and playback sets for large 4.6K ARRIRAW files and wireless video sets for monitoring the frame from a distance.
Rental terms
The ALEXA 35 is rented together with Patriot Rental specialists who operate and look after the equipment on set. Travel to shoots is possible across Ukraine and abroad, with terms agreed with a manager. Submit a request on the website and the manager will contact you to confirm the shoot details and the camera package.
1 x Case ALEXA 35 Camera and Accessory
1 x ARRI ALEXA 35 camera body
1 x ALEXA Multi Viewfinder MVF-2
1 x LPL LDS Lens Mount
1 x Port Cap for LPL-Mount
1 x PL-to-LPL-Adapter
1 x ARRI Articulated Mounting Plate AMP-1
1 x ARRI B-Mount Battery Adapter
1 x ARRI Power Distribution Module PDM-1
1 x ARRI LMS-4 Low Mode Support
1 x ARRI Top Extension Bracket TEB-1
1 x ARRI Camera Center Handle CCH-5
1 x ARRI Side Bracket CSB-1L
1 x ARRI Side Bracket CSB-1R
1 x ARRI Side Bracket CSB-1R Extension
1 x ARRI Rod Mounting Bracket RMB-7
1 x Compact Bridge Plate CBP-5
1 x Bottom Dovetail Plate ARRI Balance Utility BUD-1
1 x Square Accessory Sleeve SAS-2
1 x ARRI Viewfinder Mounting Bracket VMB-5
2 x Cable VF Right Angle (0.5m/1.5ft)
1 x Cable 6pin Lemo/M to Mini Jack/M
1 x Power Cable Straight 2m KC 50-S
3 x DJI Antenna (DJI,Alexa Mini,Cmotion)
1 x Flash 64 GB USB – Type-C for ALEXA S35
2 x Rods 19mm (Steel length 20-25cm)
2 x Rods 15mm (Aluminium length 24-25cm)
1 x Bottom Dovetail Plate ARRI/TILTA 300-350mm/12-14″
1 x Camera Plate 35 Touch
2 x Screw 3/8″-16
1 x camRade wetSuit
1 x Bag for camRade wetSuit
1 x Codex Compact Drive Dock (Thunderbolt 3) CX.0001007
1 x AC adapter Codex Compact Drive Dock (Thunderbolt 3) Globtek
1 x Power Cord EU 2pin Type – PC-118 (Shuko) (2pin)
1 x Cable Thunderbolt 3 0,5-1m
1 x Case for Battery
1 x Charger Battery SWIT PC-P461B
6 x Battery SWIT HB-A290B 290Wh 28.8V B-mount
1 x Power Cord 220V Shuko-C13 (3pin)
3 x Codex Compact Drive 2TB
3 x Case for Codex Compact Drive 1TB, 2TB
-
- Sensor
Super 35 ARRI ALEV 4 CMOS sensor
-
- Lens mounts
PL/LPL mount
-
- Filters
Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND
-
- Recording Codecs
ProRes 422, 422 HQ, 4444, 4444 XQ, ARRIRAW
-
- Frame rate
ARRIRAW 4.6K 3:2 Open Gate: 35 / 75 fps
ARRIRAW 4.6K 16:9 – 4.6K: 45 / 75 fps
ARRIRAW 4K 16:9 – 4K: 55 / 120 fps
ARRIRAW 4K 2:1 – 4K: 65 / 120 fps
ARRIRAW 3.8K 16:9 – UHD: 65 / 120 fps
ARRIRAW 3.3K 6:5 – 3.3K: 55 / 100 fps
ARRIRAW 3K 1:1 – 3K: 55 / 100 fps
Apple ProRes 4.6K 3:2 Open Gate: 60 / 60 fps
Apple ProRes 4.6K 16:9 – 4K: 75 / 75 fps
Apple ProRes 4K 16:9 – 4K: 100 / 100 fps
Apple ProRes 4K 16:9 – UHD: 120 / 120 fps
Apple ProRes 4K 16:9 – 2K: 120 / 120 fps
Apple ProRes 4K 16:9 – HD: 120 / 120 fps
Apple ProRes 4K 2:1 – 4K: 120 / 120 fps
Apple ProRes 3.3K 6:5 – 3.3K: 75 / 75 fps
Apple ProRes 3.3K 6:5 – 4K 2.39:1 Ana. 2x: 90 / 90 fps
Apple ProRes 3K 1:1 – 3K: 90 / 90 fps
Apple ProRes 3K 1:1 – 3.8K 2:1 Ana. 2x: 100 / 100 fps
Apple ProRes 2.7K 8:9 – UHD 16:9 Ana. 2x: 100 / 100fps
Apple ProRes 2K 16:9 S16 – 2K: 120 / 120 fps
-
- Battery Type
B-mount
-
- Dimensions (LхHхW)
147 x 152.5 x 203 mm
-
- Weight
∼2.9 kg
