ARRI ALEXA 35 XTREME

Reviews (0)

ARRI ALEXA 35 Xtreme: a Super 35 camera with a 4.6K sensor, ARRICORE codec and frame rates up to 660 fps.

PRICE REQUEST
One Click Request

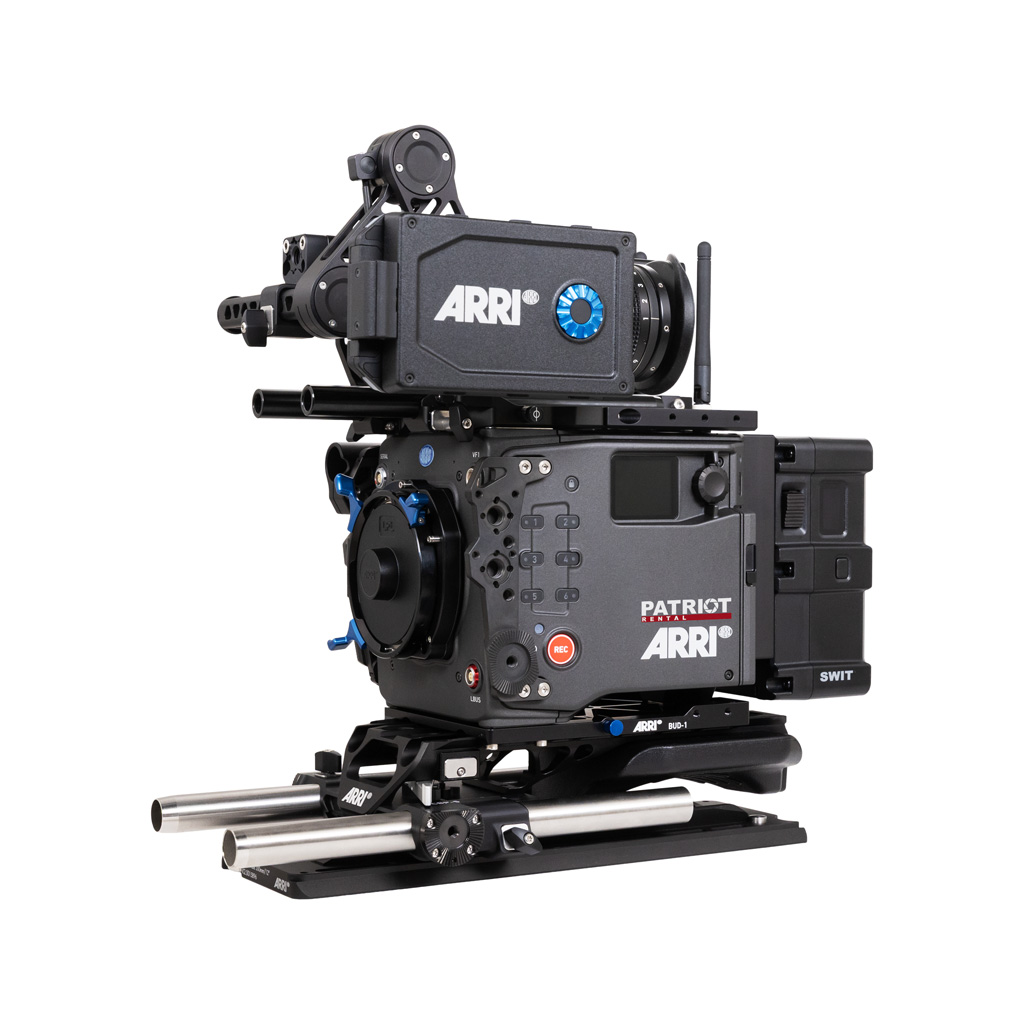

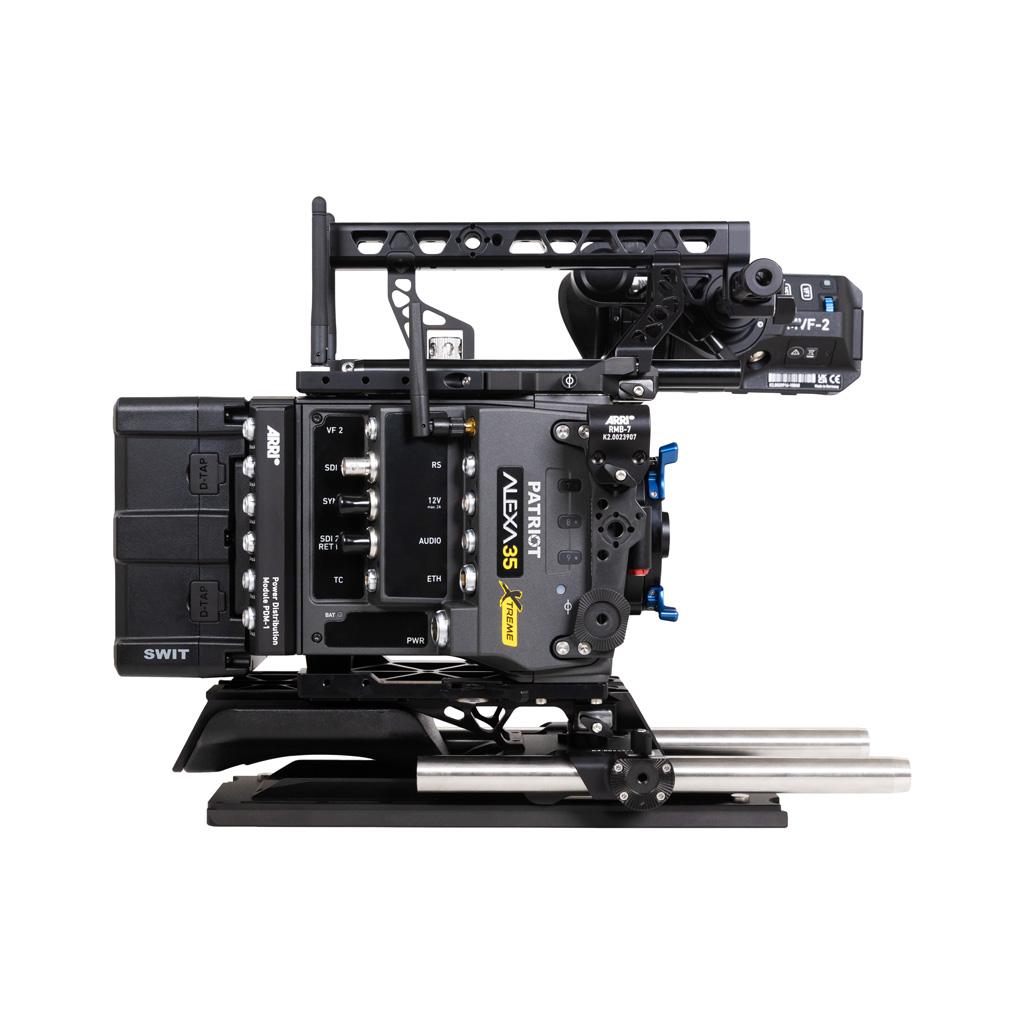

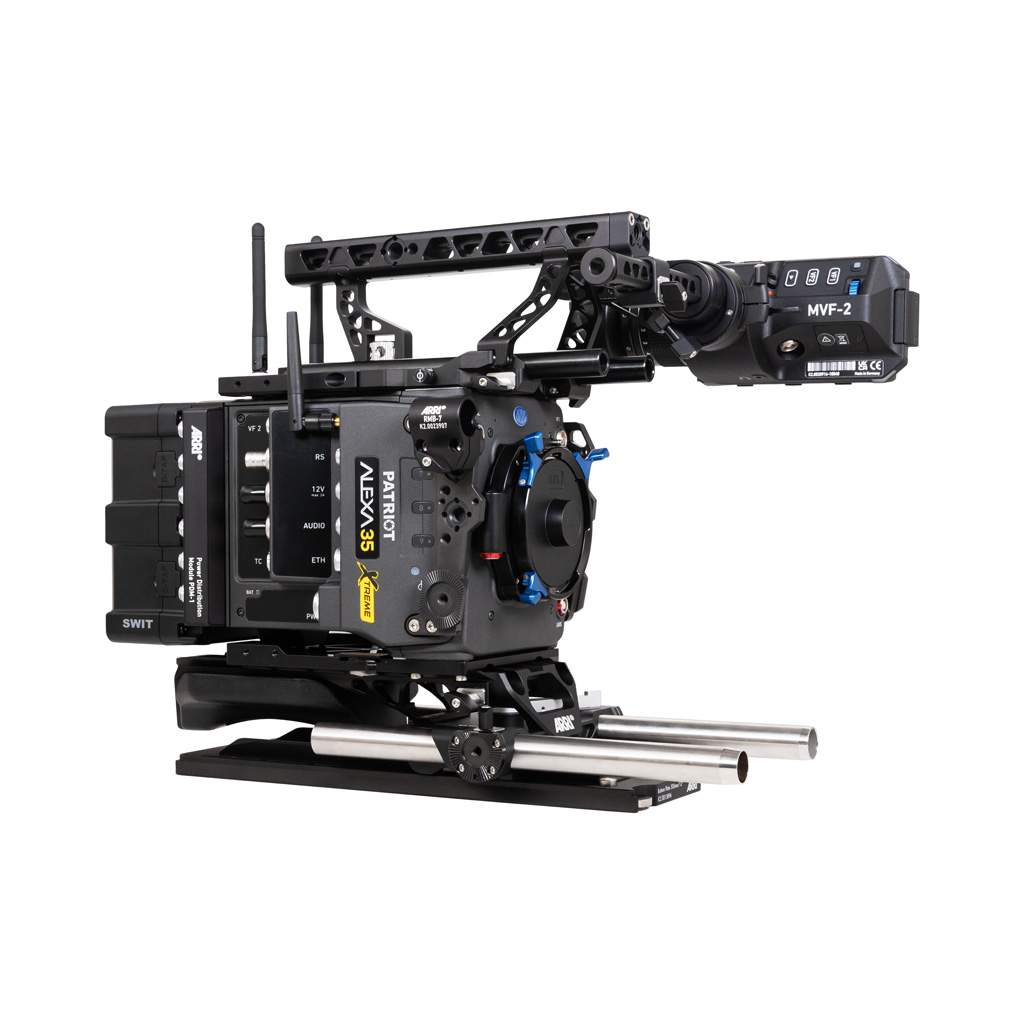

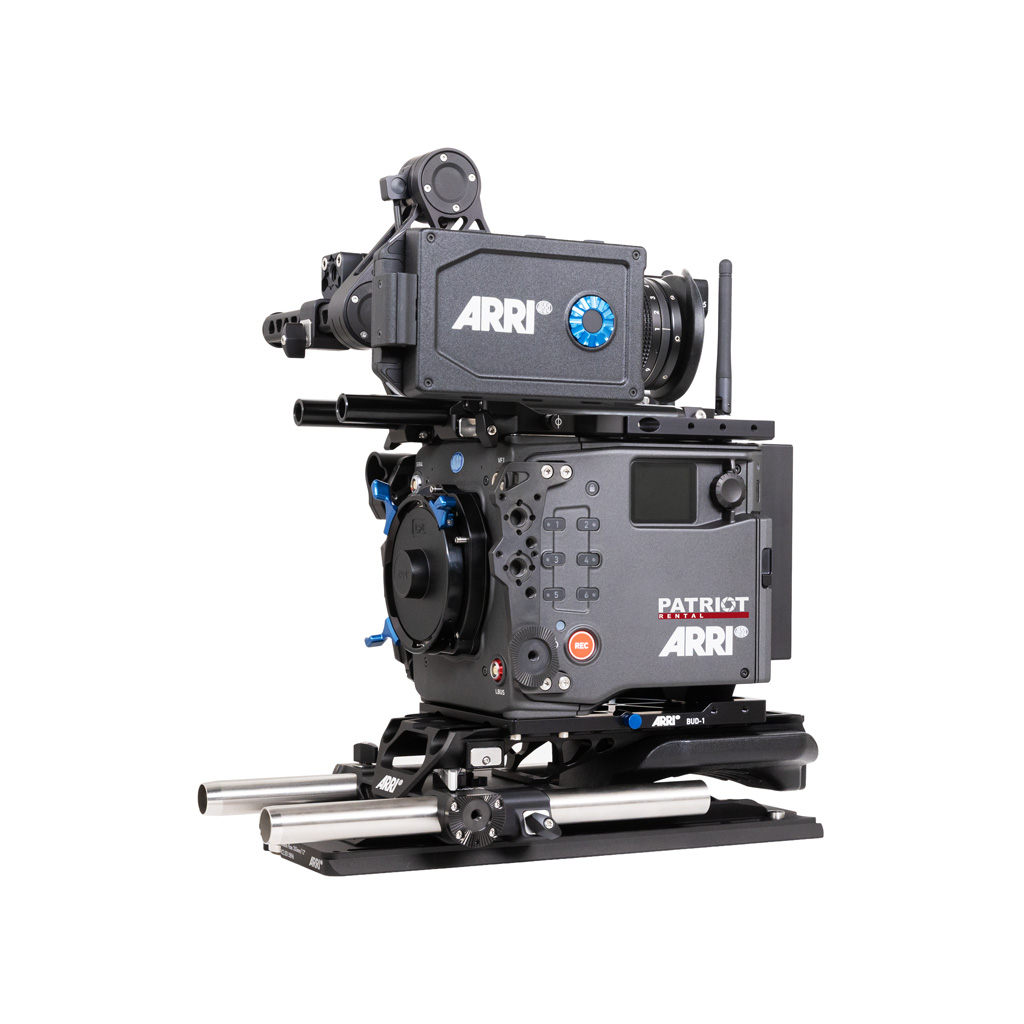

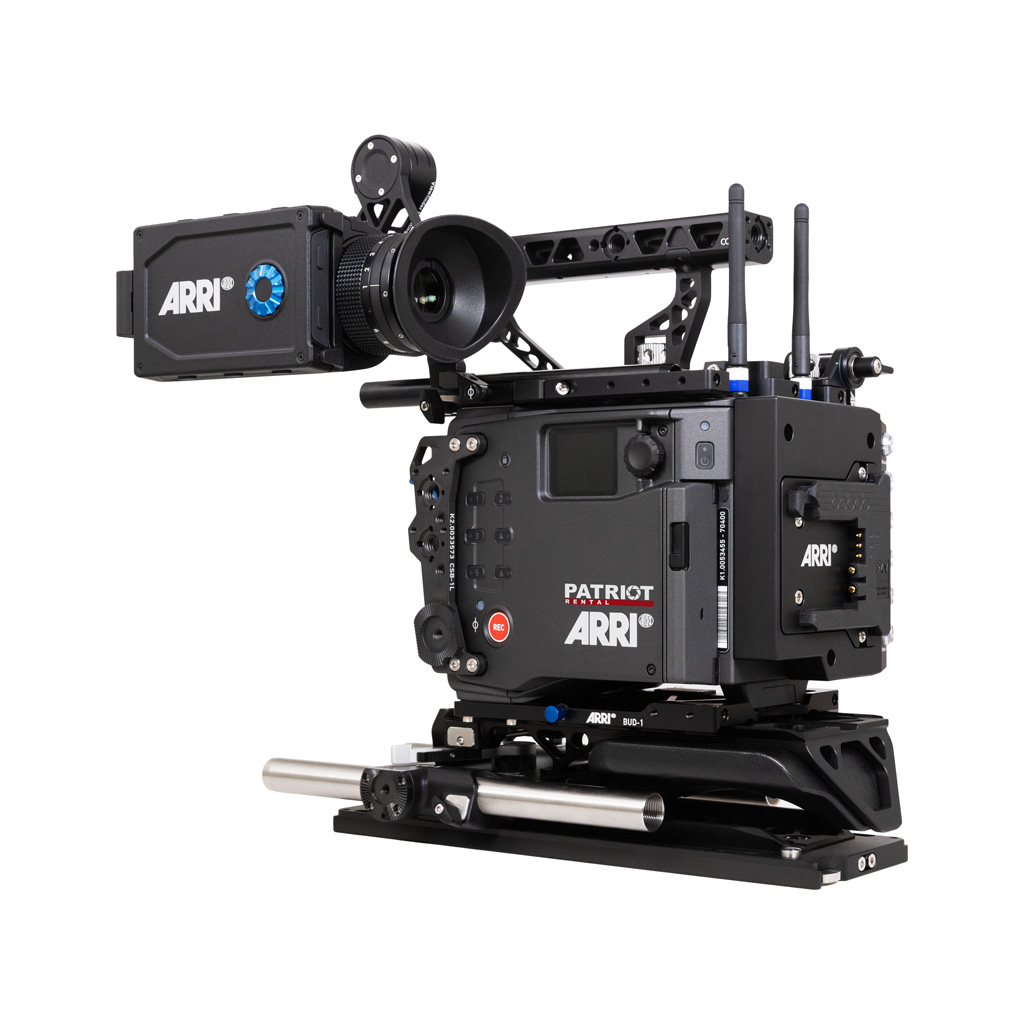

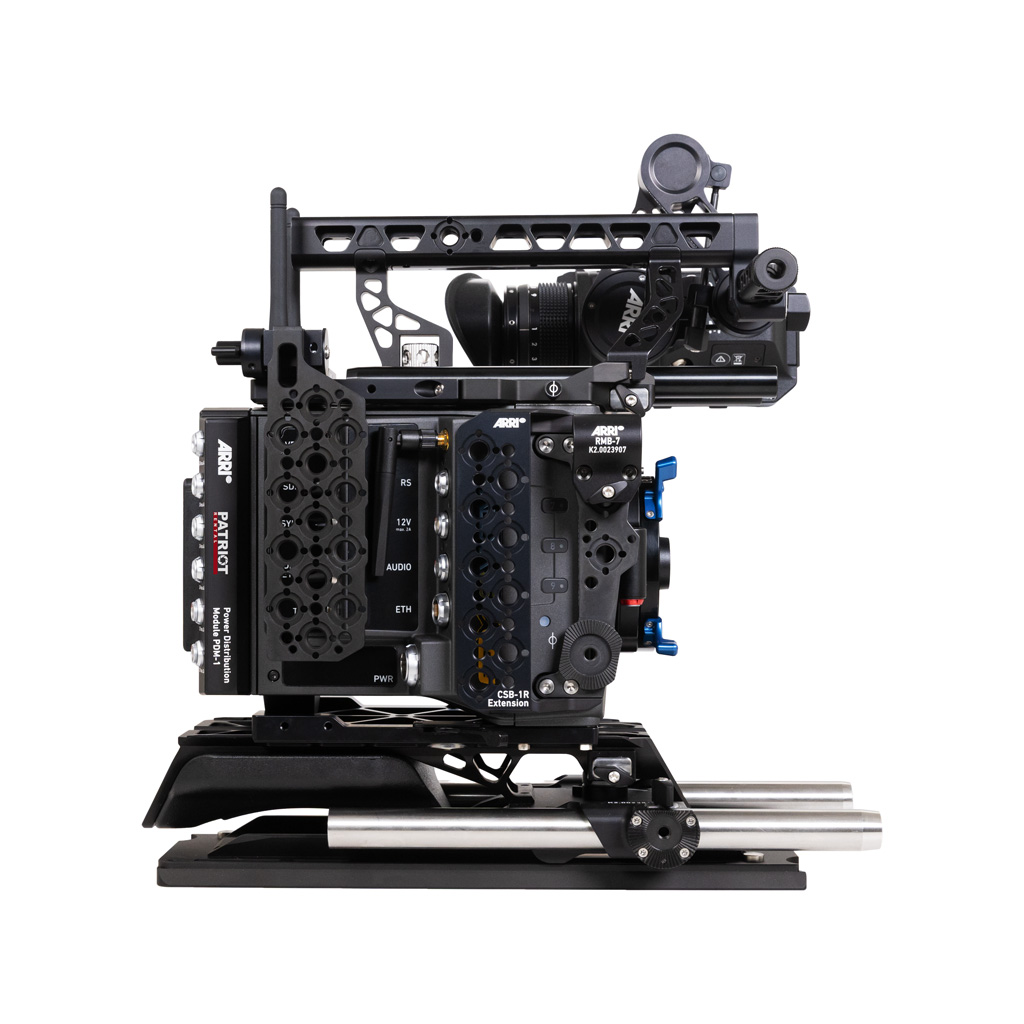

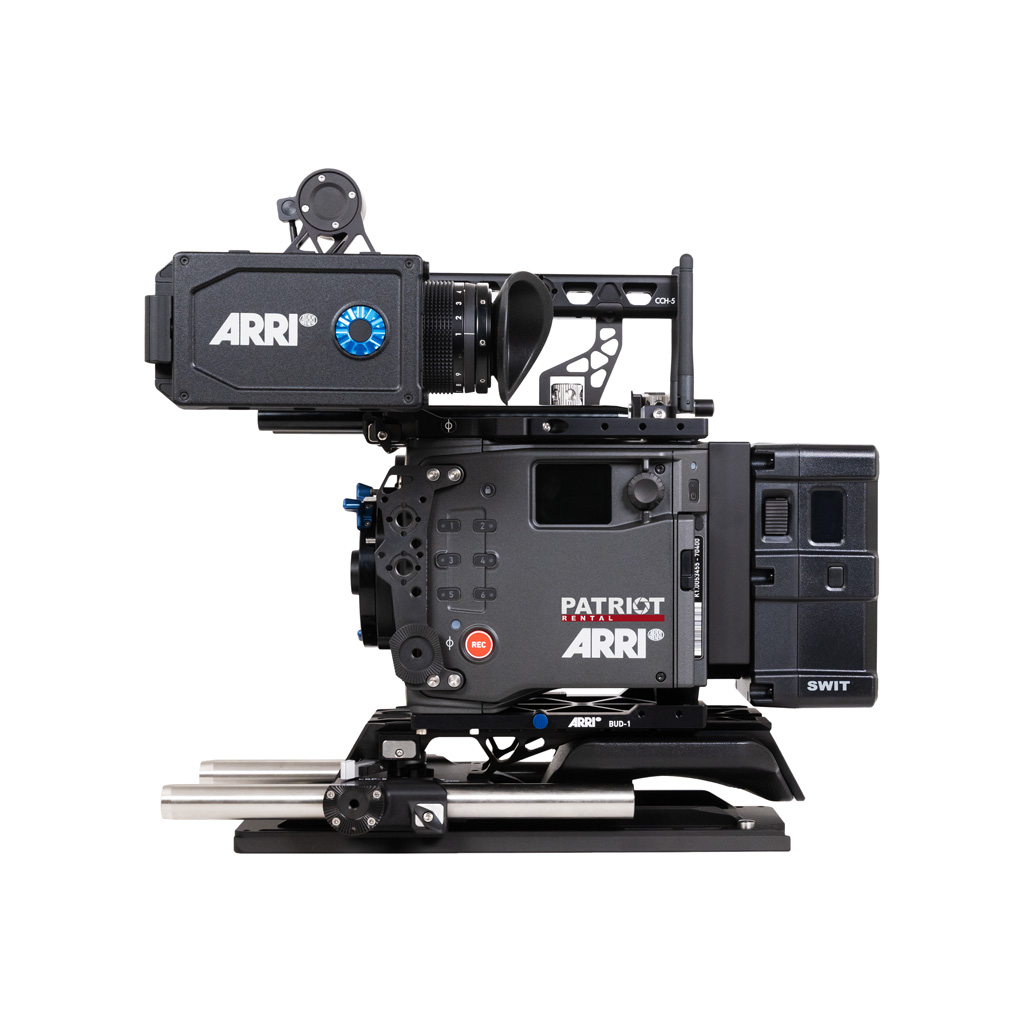

The ARRI ALEXA 35 Xtreme is a Super 35 camera weighing about 2.9 kg, made for high frame rate shooting. A more powerful processor, improved memory and the ARRICORE codec allow up to 660 fps, while the interface stays familiar to camera crews.

Key specifications

  • Super 35 ARRI ALEV 4 CMOS sensor, 4608 x 3164 (27.99 x 19.22 mm), 4:3 format
  • 17 stops of dynamic range, EI range 160-6400, Reveal Color Science and LogC4
  • ARRICORE codec: higher frame rates and longer recording times, sensitivity and white balance are not baked into the file
  • Pre-record of up to 5 minutes depending on the format, 5 times longer than on the ALEXA 35
  • Power consumption 10% lower than the ALEXA 35
  • LPL mount (LBUS), PL lenses through the PL-to-LPL adapter from the kit
  • Built-in ND filters: Clear, 0.6, 1.2 and 1.8, B-mount battery power
  • Premium license: ARRIRAW, 660 fps High Speed, Open Gate/Anamorphic, Pre-Record, ARRI Looks, Textures
  • Dimensions 147 x 152.5 x 203 mm (L x H x W), weight about 2.9 kg

Recording formats and frame rates

  • Up to 330 fps in 2K 16:9 (Super 16) with the full 17 stops of dynamic range
  • Up to 660 fps in Sensor Overdrive mode: 11 stops of dynamic range, base sensitivity EI 1600
  • Up to 120 fps in 4.6K Open Gate when recording to a 2 TB drive

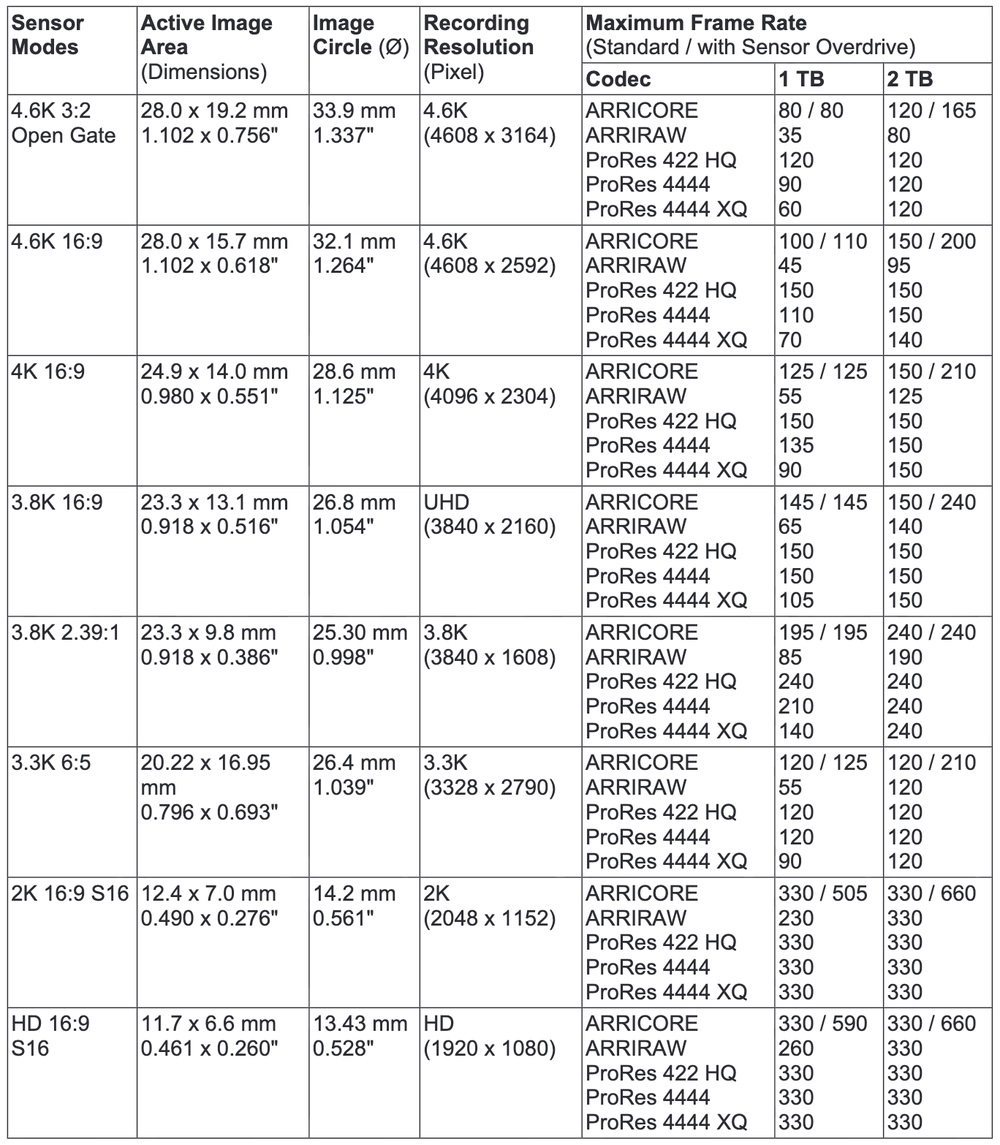

ARRI ALEXA 35 Xtreme sensor modes: formats and frame rates table



What is in the kit

  • Case and ALEXA 35 body, ALEXA Multi Viewfinder MVF-2
  • LPL mount (LPL LDS Lens Mount), PL-to-LPL adapter
  • AMP-1 mounting plate, LMS-4 low mode support, TEB-1 top extension bracket, CCH-5 handle, CSB-1 side brackets, CBP-5 and BUD-1 plates, RMB-7, SAS-2 and VMB-5 brackets
  • 300-350 mm dovetail plate, Camera Plate 35 Touch, 15 mm rods (2 pcs) and 19 mm rods (2 pcs)

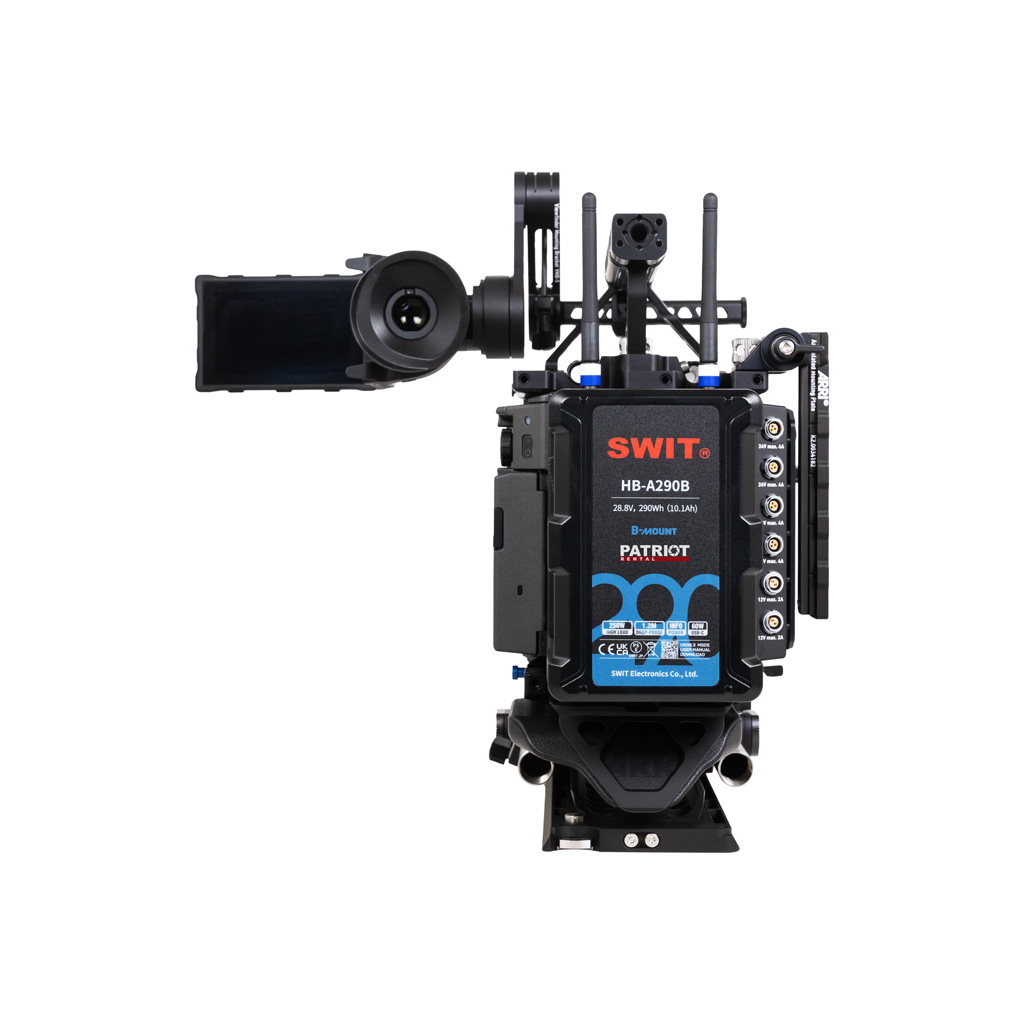

  • Power: B-mount adapter, PDM-1 module, 6 SWIT HB-A290B 290 Wh B-mount batteries with charger and case
  • Media: 3 Codex Compact Drive 2 TB drives in a case, Codex Compact Drive Dock (Thunderbolt 3)
  • 3 DJI antennas, cables, 64 GB USB-C flash drive, camRade wetSuit kit

The full list is on the Includes tab.

Lenses

For ALEXA 35 Xtreme the catalog includes ARRI Signature Prime (LPL), Zeiss Supreme Prime (LPL/PL) and Cooke S7/i FF (PL), all for full frame, as well as the anamorphic Cooke Anamorphic/i FF Plus (PL). PL lenses are mounted through a PL-to-LPL adapter, which is included in the camera kit.

Stabilization and accessories

For stabilization there are the DJI Ronin 2 (load up to 13.6 kg) and the Easyrig Vario 5 with STABIL Arm (up to 17 kg), with other options in the camera stabilization section. Check the weight of your rig with a manager. There are also lens control systems, matte boxes and tripods and heads. High frame rates need a lot of light, so take a look at lighting, and at DIT and playback sets for the larger volumes of footage.

Rental terms

The ALEXA 35 Xtreme is rented together with Patriot Rental specialists who operate and look after the equipment on set. Travel to shoots is possible across Ukraine and abroad, with terms agreed with a manager. Submit a request on the website and the manager will contact you to confirm the shoot details and the camera package.

1 x Case ALEXA 35 Camera and Accessory
1 x ARRI ALEXA 35 camera body
1 x ALEXA Multi Viewfinder MVF-2
1 x LPL LDS Lens Mount
1 x Port Cap for LPL-Mount
1 x PL-to-LPL-Adapter
1 x ARRI Articulated Mounting Plate AMP-1
1 x ARRI B-Mount Battery Adapter
1 x ARRI Power Distribution Module PDM-1
1 x ARRI LMS-4 Low Mode Support
1 x ARRI Top Extension Bracket TEB-1
1 x ARRI Camera Center Handle CCH-5
1 x ARRI Side Bracket CSB-1L
1 x ARRI Side Bracket CSB-1R
1 x ARRI Side Bracket CSB-1R Extension
1 x ARRI Rod Mounting Bracket RMB-7
1 x Compact Bridge Plate CBP-5
1 x Bottom Dovetail Plate ARRI Balance Utility BUD-1
1 x Square Accessory Sleeve SAS-2
1 x Viewfinder Mounting Bracket VMB-5
1 x Codex Compact Drive Dock (Thunderbolt 3) CX.0001007
1 x AC adapter Codex Compact Drive Dock (Thunderbolt 3) Globtek
1 x Power Cord EU 2pin Type – PC-118 (Shuko) (2pin)
1 x Cable Thunderbolt 3 0,5-1m
2 x Cable VF Right Angle (0.5m/1.5ft)
1 x Cable 6pin Lemo/M to Mini Jack/M
1 x Power Cable Straight 2m KC 50-S
3 x DJI Antenna (DJI,Alexa Mini,Cmotion)
1 x Flash 64 GB USB – Type-C for ALEXA S35
2 x Rods 19mm (Steel length 20-25cm)
2 x Rods 15mm (Aluminium length 24-25cm)
1 x Bottom Dovetail Plate ARRI/TILTA 300-350mm/12-14″
1 x Camera Plate 35 Touch
2 x Screw 3/8″-16
1 x Case for Battery
1 x Charger Battery SWIT PC-P461B

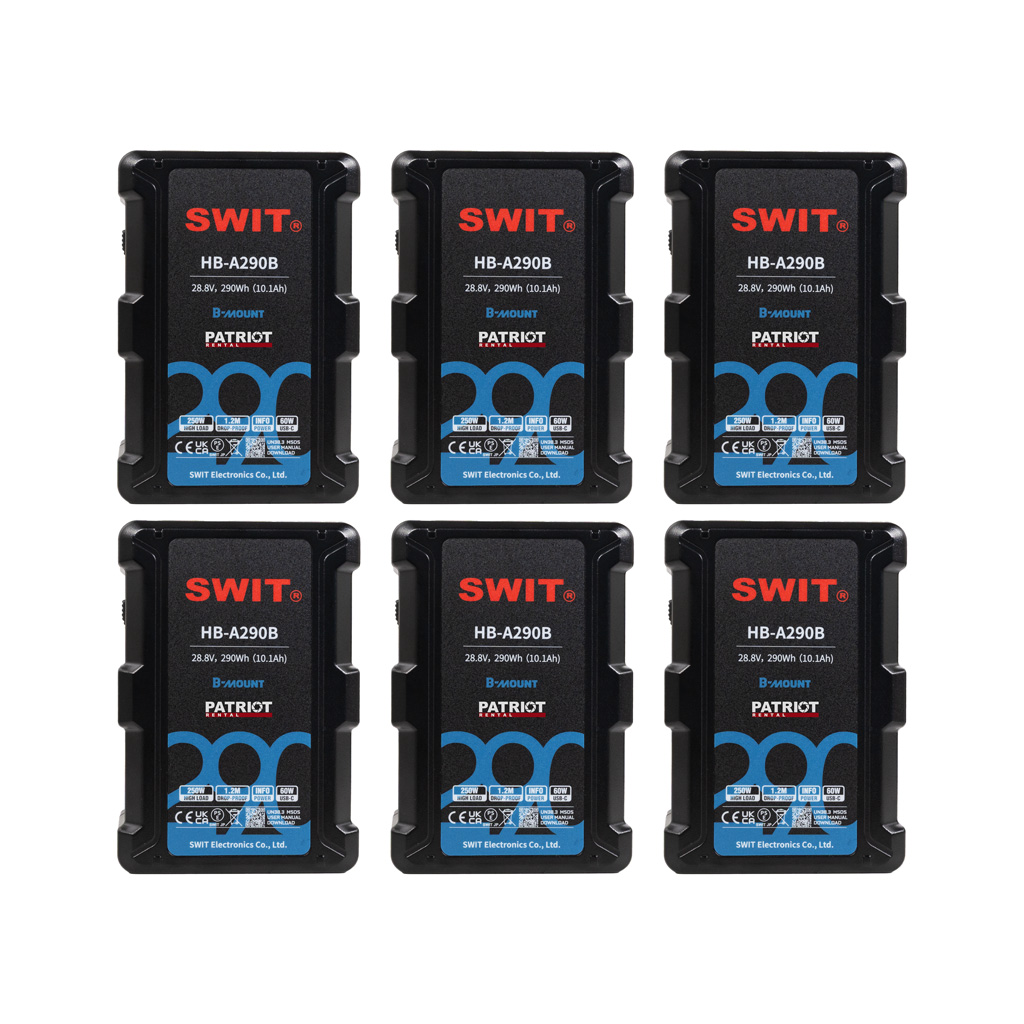

6 x Battery SWIT HB-A290B 290Wh 28.8V B-mount
1 x Power Cord 220V Shuko-C13 (3pin)
1 x camRade wetSuit
1 x Bag for camRade wetSuit
3 x Codex Compact Drive 2TB
3 x Case for Codex Compact Drive 1TB, 2TB

  • Sensor

    Super 35 ARRI ALEV 4 CMOS sensor

  • Lens mounts

    PL/LPL mount

  • Filters

    Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters

  • Recording Codecs

    ProRes 4444/ProRes 422 HQ/ARRICORE/MXF/ProRes 4444XQ

  • Frame rate

    ARRIRAW 4.6K 3:2 Open Gate: 35 / 80 fps
    ARRIRAW 4.6K 16:9: 45 / 95 fps
    ARRIRAW 4K 16:9: 55 / 125 fps
    ARRIRAW 3.8K 16:9: 65 / 140 fps
    ARRIRAW 3.8K 2.39:1: 85 / 190 fps
    ARRIRAW 3.3K 6:5 – 3.3K: 55 / 120 fps
    ARRIRAW 2K 16:9 S16: 230 / 330 fps
    ARRIRAW HD 16:9 S16: 260 / 330 fps

    ARRICORE 4.6K 3:2 Open Gate: 80 / 120 – 80* / 165* fps
    ARRICORE 4.6K 16:9: 100 / 150 / – 100* / 200* fps
    ARRICORE 4K 16:9: 125 / 150 – 125* / 210* fps
    ARRICORE 3.8K 16:9: 145 / 150 – 145* / 240* fps
    ARRICORE 3.8K 2.39:1: 195 / 240 – 195* / 240* fps
    ARRICORE 3.3K 6:5 – 3.3K: 120 / 120 – 125* / 210* fps
    ARRICORE 2K 16:9 S16: 330 / 330 – 505* / 660* fps
    ARRICORE HD 16:9 S16: 330 / 330 – 590* / 660* fps

    Apple ProRes 4444 4.6K 3:2 Open Gate: 90 / 120 fps
    Apple ProRes 4444 4.6K 16:9: 110 / 150 fps
    Apple ProRes 4444 4K 16:9: 135 / 150 fps
    Apple ProRes 4444 3.8K 16:9: 150 / 150 fps
    Apple ProRes 4444 3.8K 2.39:1: 210 / 240 fps
    Apple ProRes 4444W 3.3K 6:5 – 3.3K: 120 / 120 fps
    Apple ProRes 4444 2K 16:9 S16: 330 / 330 fps
    Apple ProRes 4444 HD 16:9 S16: 330 / 330 fps

    Compact Drive 1TB / 2TB, *with Sensor Overdrive

  • Battery Type

    B-mount

  • Dimensions (LхHхW)

    147 x 152.5 x 203 mm

  • Weight

    ∼2.9 kg

  • Additional Lightweight Power Pack B-mount
  • Viewfinder Eyecushion 6012 Oval Large
  • Codex Compact Drive 1TB
  • Power Pack incl. Charger and 6 batteries (for ALEXA 35 Xtreme)
